Water Treatment System
ID#1533 | 2019 | Regina SK Canada | Status: Available

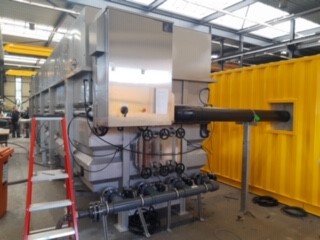

600 gpm Dissolved Air Floatation, Floc Tube and Control Room

Features

GEE’s Dissolved Air Flotation (DAF) system with flocculation tube, all controlled within a 8 x 20 Control Room.  The GEE system is a highly efficient pre-treatment step for the separation of suspended solids and oil and grease contaminants from wastewater. The compact GEE DAF system boasts high removal rates, 99.9% runtime and a robust design. The compact DAF can either be integrated in a complete solution or offered as a single product for your wastewater treatment.

The DAF unit dimensions are 8ft x 37ft

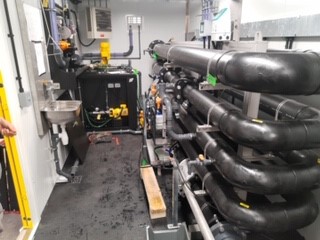

There is also a 8’ x 40’ sea container that contains the following:

- Feed pump to flocculation/flotation system

- Influent flowmeter

              - Flocculator PFR 80

              - Coagulant dosing pump 200 ltr/hr

              - pH-controller

              - Acid dosing pump 200 ltr/hr

              - Neutralizer dosing pump 200 ltr/hr

              - Flocculant (liquid and dry) dosing pump

              - Automatic flocculant make up station for liquid polymer, type NMA 4000 L

              - Flotation unit NOF20

              - 1 Recirculation pump / aeration system

              - Pneumatic control panel

              - 1 Sludge pump + level sensor

              - 1 Compressor + air dryer

              - 20 Ft Container  with all the chemical dosing, flocculator, EPanel, compressor, aeration system; mounted/setup

              - Data logger in E-control panel for pH, temperature and flow

              - NI-Connect

              - Electric control panel with HMI

Product Info
DAF 600gpm, with Floc Tube and 8x20 Control Room

Rental Rates

Contact us for rental details
